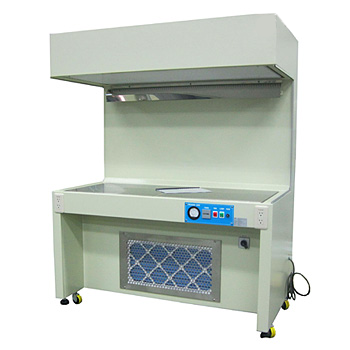

Clean Bench Vertical Type

Description

Clean Bench Vertical Type




- It's the most effective method and an economical contamination controlled
  environment of providing a HEPA filtered 99.99% at 0.3 microns clean air to
  ensure an critical clean atmosphere in an operator workstation or inspection
  process work area.

- Clean benches are cost effective and come in a variety of custom sizes and
  models.

- The critical work area can be kept at class 100, 10, or 1 utilizing horizontal or
  vertical laminar flow.

- They can be effectively used for manufacturing and inspection process in
  Bio-chemical, Photo-electronics, Semiconductors, Microelectronics, Food,
  Pharmaceutical, or medical industries.





Features



Item

CB100

CB130

CB190

Outside Dimension

W

1060

1360

1910

D

1000

1000

1000

H

1740

1740

1740

Useful Dimension

W1

900

1200

1800

D1

700

700

700

H1

700

700

700

Body Construction

1.6t Powder Coating Steel,or 1.5t SUS Stainless Steel

HEPA

Features

Aluminum Frame,Filtration Efficiency 99.99%,0.3 um

Dimension

915×610

1220×610

1830×610

Pre- Filter

Features

Aluminum Frame,Non- Woven Fabric,22t

Dimension

595×290-2
595×595-1

595×290-1
595×595-2

595×290-1
595×595-3

Lighting

20W×1

40W×1

40W×1

Blower

1/2HP

1/2HP

3/4HP

Accessories

Magnehelic gauge、Timer、Lighting Switch、Electric Outlet、Fan Motor Switch

Power Supply

AC 1Ø □ 110V □ 220V,50/60Hz

Option

Ionizing Bar
